Regenerative Braking System

Understanding Regenerative Braking

1. What's the Big Deal with Regenerative Braking?

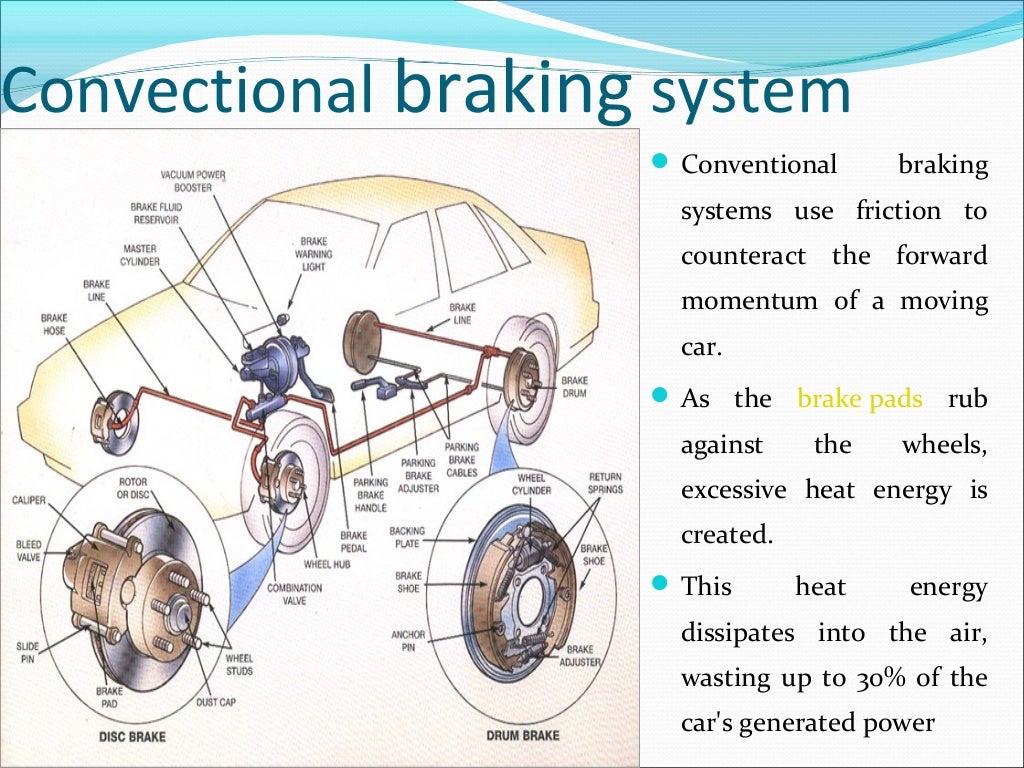

So, you're curious about regenerative braking? Awesome! It's essentially a clever trick that turns your vehicle's kinetic energy — that's the energy it has while moving — back into something useful, like electricity. Think of it as catching a ball instead of just letting it smack into a wall. Instead of wasting all that energy as heat (like traditional brakes do), we're putting it to work again. Pretty neat, huh?

The core principle revolves around using the electric motor in your hybrid or electric vehicle in reverse. Instead of consuming electricity to propel the wheels, the motor acts as a generator. As you slow down, the motor resists the wheels' rotation, and that resistance generates electricity. This electricity is then fed back into the battery, giving you a little extra juice for later. It's like getting paid to slow down! (Okay, maybe not paid paid, but you're saving money on electricity, which is kind of the same thing.)

Now, before you get too excited and think you can build a perpetual motion machine, remember that there are limitations. Regenerative braking typically only provides a portion of the braking force, especially at higher speeds or during emergency stops. That's why conventional friction brakes are still necessary to bring the vehicle to a complete stop. But even that partial regeneration can significantly improve fuel efficiency or extend the range of your electric vehicle. Plus, it reduces wear and tear on your regular brakes, which means fewer trips to the mechanic. (Yay!)

Think of it as a gentle nudge in the right direction. Every little bit of energy recovered adds up, and over time, it can make a real difference in your wallet and the environment. The amount of energy that can be actually recovered really depends on the vehicle and the driving conditions. Stop-and-go traffic is a regenerative braking paradise, but highway cruising? Not so much. Still, every kilowatt-hour saved is a victory. Now, let's dive into how these systems are typically structured.

Regenerative Braking BrakeBetter Brake Systems Experts

Building Blocks

2. What You Need to Make the Magic Happen

Alright, so you're thinking about actually making a regenerative braking system? Buckle up, because we're about to get a little technical (but not too technical, I promise!). The basic setup isn't rocket science, but it does require a few key ingredients.

First, you'll need an electric motor or generator. In most modern electric vehicles, the same motor is used for both propulsion and regeneration. The motor's size and power will depend on the size and weight of the vehicle you're trying to equip. You'll also need a power inverter to convert the AC power generated by the motor into DC power that can be stored in the battery. This inverter needs to be bi-directional, meaning it can also convert DC power back to AC power to drive the motor when accelerating.

Next up is the battery. This is where all that recovered energy gets stored. The type and capacity of the battery will determine how much energy you can recover and how quickly you can discharge it. Lithium-ion batteries are the most common choice these days, thanks to their high energy density and relatively long lifespan. But battery technology is constantly evolving, so keep an eye out for newer, even better options.

Finally, you'll need a control system. This is the brains of the operation, responsible for managing the entire regenerative braking process. It monitors the vehicle's speed, brake pedal position, and battery state of charge, and then adjusts the motor's torque and power output accordingly. The control system also needs to seamlessly blend regenerative braking with conventional friction braking to provide a smooth and consistent braking experience. Getting this part right is crucial for safety and driver comfort. Without it, it's like trying to conduct an orchestra with a kazoo!

Don't forget the wiring and sensors! These are the nervous system of the whole system. All of these parts need to be connected carefully, in order to make everything run smoothly. And while it sounds simple in paper, there is a lot of testing that needs to be done to make sure it all works together.

Simulation Research On Regenerative Braking Control Strategy Of Hybrid

The Software Side

3. Making It All Work Together Seamlessly

Hardware is great, but without the right software, your regenerative braking system will be about as useful as a chocolate teapot. The control system is what orchestrates the entire process, ensuring that everything works together smoothly and safely. This involves a complex algorithm that takes into account a variety of factors.

First and foremost, the control system needs to monitor the driver's braking input. How hard are they pressing the brake pedal? How quickly are they pressing it? This information is used to determine the desired braking force. Then, the control system calculates how much of that braking force can be provided by regenerative braking and how much needs to be supplemented by the friction brakes. The goal is to maximize energy recovery while maintaining consistent and predictable braking performance.

Another important function of the control system is to manage the battery's state of charge. It needs to prevent the battery from being overcharged or over-discharged, as this can damage the battery and reduce its lifespan. The control system also needs to take into account the battery's temperature, as temperature extremes can also affect its performance. Essentially, the control system is constantly juggling a bunch of different variables to keep everything running smoothly and efficiently.

Calibration is also critical. This involves fine-tuning the control system to match the specific characteristics of the vehicle, motor, battery, and braking system. This is typically done through a series of tests and adjustments, and it can be a time-consuming process. But it's essential to ensure that the regenerative braking system is performing optimally and that it's providing a safe and comfortable driving experience. Think of it as getting your car custom-tailored for maximum performance.

Without a properly calibrated system, the vehicle can get a lot of unwanted shaking. Even the most miniscule error can lead to bigger problems, so precision is always key.

Energies Free FullText Regenerative Braking Control Strategy Of

The DIY Approach

4. Is Building Your Own System Realistic?

Okay, so you're still determined to build your own regenerative braking system? I admire your enthusiasm! However, before you start tearing apart your car, let's talk about the challenges and considerations involved in a DIY project like this. It's not impossible, but it's definitely not for the faint of heart.

One of the biggest challenges is sourcing the necessary components. You'll need to find a suitable electric motor or generator, a power inverter, a battery, and a control system. While you might be able to salvage some of these components from used electric vehicles or industrial equipment, you'll likely need to purchase some new parts as well. And finding high-quality, reliable components that are compatible with each other can be a challenge in itself.

Another challenge is the complexity of the control system. Developing a control algorithm that can accurately manage the regenerative braking process requires a deep understanding of electrical engineering, control theory, and automotive engineering. Unless you have significant expertise in these areas, you'll likely need to rely on open-source software or pre-built control modules. But even with these resources, you'll still need to spend a considerable amount of time tweaking and calibrating the system to achieve optimal performance.

Finally, there's the safety aspect to consider. Regenerative braking systems are safety-critical components, and a malfunctioning system could have serious consequences. If you're not careful, you could damage your vehicle, injure yourself, or even cause an accident. So, before you start building your own system, make sure you have a solid understanding of the risks involved and that you're taking all necessary precautions. Honestly, unless you have a background in automotive engineering or a really compelling reason to do it yourself, it's probably best to leave this one to the professionals. But hey, I'm not one to discourage experimentation! Just be careful out there.

If you are still set on doing this, it is best to start small and build up gradually, so it does not overwhelm you. Seek help from other experts, and ask for advice whenever you can.

Regenerative Braking System Control Strategy Model Ac Vrogue.co

Benefits Beyond Efficiency

5. More Than Just Saving a Few Bucks

While the primary benefit of regenerative braking is increased energy efficiency, the positive effects ripple far beyond just saving a few bucks at the "fuel" pump. Think of it as a domino effect, where one good thing leads to another.

For starters, regenerative braking reduces wear and tear on your conventional friction brakes. Since the electric motor handles a significant portion of the braking duties, your brake pads and rotors last longer, which means fewer trips to the mechanic and lower maintenance costs. Plus, less brake dust is released into the environment, which is a good thing for air quality.

Then there's the environmental impact. By recovering energy that would otherwise be wasted as heat, regenerative braking reduces the overall energy consumption of your vehicle. This translates into lower emissions and a smaller carbon footprint. It's like giving the planet a little hug every time you slow down. And in a world that's increasingly concerned about climate change, every little bit helps.

Regenerative braking can also improve the driving experience. Many drivers find that electric vehicles with regenerative braking offer a smoother and more responsive braking feel. The regenerative braking system can also provide a form of "one-pedal driving," where you can control the vehicle's speed primarily with the accelerator pedal. Lifting your foot off the accelerator causes the regenerative braking to kick in, slowing the vehicle down without needing to use the brake pedal. This can make driving in stop-and-go traffic much less stressful and more enjoyable.

In some cases, regenerative braking systems can even improve vehicle safety. By providing additional braking force, they can help to reduce stopping distances, especially in slippery conditions. And the control system can be programmed to automatically adjust the regenerative braking force based on road conditions and vehicle dynamics, further enhancing safety. So, regenerative braking isn't just about saving energy — it's about making driving safer, cleaner, and more enjoyable for everyone.

What Is A Regenerative Brake System At Penny Troche Blog

Frequently Asked Questions (FAQ)

6. Your Burning Questions Answered

Q: Can I add regenerative braking to my existing gasoline car?

A: While theoretically possible, it's extremely difficult and costly. It would involve replacing major components and requires extensive modifications. It's generally not feasible for most people. Better to just consider a hybrid or EV next time!

Q: Does regenerative braking work in all weather conditions?

A: It generally works well, but may be limited in very slippery conditions (like ice) to prevent wheel lockup. The control system typically reduces or disables regenerative braking in such situations.

Q: Is regenerative braking hard on the battery?

A: Not if it's managed properly! The control system is designed to prevent overcharging and over-discharging, which could damage the battery. Modern batteries are also designed to handle the charging and discharging cycles associated with regenerative braking.

Q: Does regenerative braking completely replace friction brakes?

A: Nope! Friction brakes are still needed for hard stops and to bring the vehicle to a complete stop. Regenerative braking supplements, but doesn't replace, traditional brakes.
