Unveiling the Connection
1. The Invisible Handshake
Ever wonder what really makes electricity tick? It's not just about batteries and wires, you know! Beneath the surface lies a fascinating relationship between two fundamental concepts: the electric field and electric potential. Think of it like this: the electric field is like the force that's pushing and pulling charges around, while the electric potential is like the "height" or "pressure" that determines which way those charges will go. It's a dance, a give-and-take, and understanding it is key to grasping how electricity works.
So, picture a landscape. Now, imagine that landscape isn't made of hills and valleys, but of electric potential. Charged particles, like tiny marbles, will roll downhill — they'll move from areas of high electric potential to areas of low electric potential. What's creating that "slope"? You guessed it: the electric field! It's the invisible hand guiding those charged particles along their merry way.
Lets ditch the landscape analogy for a moment. Think of an electric outlet. It has a voltage (electric potential) that's different than, say, the ground. That difference creates a force, an electric field, that pushes electrons through your phone charger when you plug it in. No electric field, no charging! Its that simple (or, you know, as simple as electromagnetism gets).
We're going to break down exactly how these two concepts are related, and hopefully, by the end of this little exploration, you'll have a much clearer picture of what's going on inside all those wires and gadgets. Consider this your friendly neighborhood guide to the world of electromagnetism — no lab coat required (though feel free to wear one if it makes you feel more official!).
2. The Electric Field
3. Defining the Push and Pull
The electric field, in its simplest form, is a force field created by electric charges. It's that region of space around a charge where another charge would experience a force. Think of it like the gravitational field around the Earth — objects with mass feel a pull towards the Earth. Similarly, charges within an electric field feel a push or pull depending on their own charge (positive or negative) and the direction of the field.
Electric field strength is a vector quantity, meaning it has both magnitude (how strong the force is) and direction (which way the force is pointing). We often represent electric fields using field lines. These lines show the direction of the force that a positive test charge would experience. The closer the lines are together, the stronger the field. So, a dense cluster of field lines indicates a powerful electric force in that area.
Mathematically, the electric field (E) is defined as the force (F) per unit charge (q): E = F/q. This equation tells us that the electric field at a point is the force that a tiny, positive "test charge" would experience if placed at that point, divided by the size of the test charge. This is why the unit for electric field is often Newtons per Coulomb (N/C).
Now, remember that the electric field isn't just a theoretical construct. It's a real, measurable force that shapes how charges interact. It's the engine behind everything from lightning strikes to the tiny currents that power your phone. Its the backbone of many electronic devices we use everyday.
4. Electric Potential
5. Potential Energy Hill
Electric potential, sometimes called voltage, is a scalar quantity (meaning it only has magnitude, no direction) that represents the amount of potential energy a unit charge would have at a specific location in an electric field. Think of it as the "electrical height" of that point. Just like objects tend to roll downhill, positive charges tend to move from areas of high electric potential to areas of low electric potential. This movement releases energy, and that's what powers our electronic devices.
The electric potential difference between two points is what really matters. Its the difference in "electrical height" that drives charges from one point to another. This difference is often called voltage, and it's what your wall outlet is rated for (e.g., 120 volts in the US). A higher voltage means a greater "push" on the charges, and thus, a greater flow of electric current.
Mathematically, the electric potential (V) is defined as the potential energy (U) per unit charge (q): V = U/q. The unit of electric potential is the Volt (V), which is equivalent to Joules per Coulomb (J/C). So, a potential of 1 Volt means that a charge of 1 Coulomb would have 1 Joule of potential energy at that location.
You might be wondering, "Where does this potential energy come from?" Well, it comes from the work done to move a charge against the electric field. Just like it takes work to lift an object against gravity, it takes work to move a charge against the force of an electric field. This work gets stored as potential energy, ready to be released when the charge is allowed to move freely.
6. The Grand Equation
7. -V = E

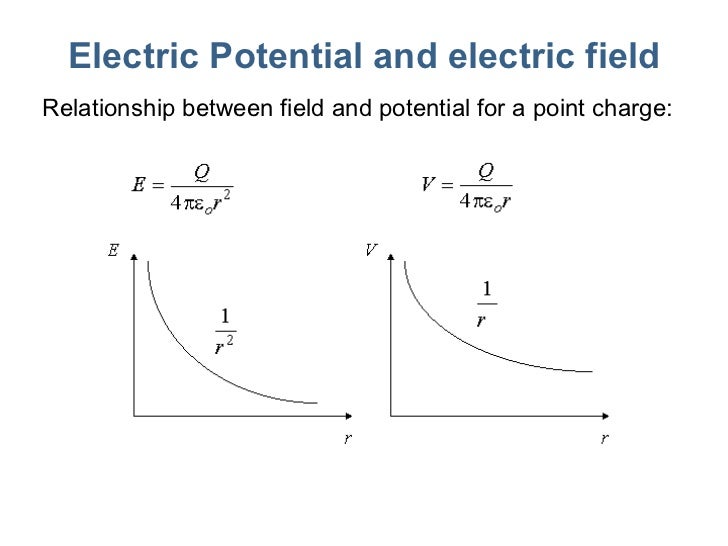

Now for the big reveal! The relationship between the electric field (E) and the electric potential (V) is beautifully captured in a single equation: E = -V. This might look intimidating, but let's break it down. The symbol "" (nabla) represents the gradient, which, in simple terms, is a measure of how quickly the electric potential is changing with respect to position. The minus sign indicates that the electric field points in the direction of the steepest decrease in electric potential.
In plain English, this equation tells us that the electric field is the negative gradient of the electric potential. Imagine our landscape analogy again. The electric field is like the slope of the hills, and it points in the direction water would flow downhill. The steeper the slope (the larger the gradient), the stronger the electric field.
Another way to think about it is this: the electric field tells you how the electric potential is changing at each point in space. If you know the electric potential everywhere, you can calculate the electric field. Conversely, if you know the electric field everywhere, you can calculate the electric potential (up to a constant). They are intimately linked, like two sides of the same coin.
This equation is incredibly powerful because it allows us to calculate the electric field if we know the electric potential, or vice versa. It's a cornerstone of electromagnetism and is used extensively in designing and analyzing electrical circuits, electronic devices, and many other applications. It allows engineers and scientists to predict how electric charges will behave in various situations, leading to incredible technological advancements.
8. Practical Applications
9. From Circuits to Scanners
So, why should you care about the relationship between electric fields and electric potential? Well, it's not just some abstract theoretical concept. It has real-world applications that touch our lives every day. Think about the electrical circuits in your phone, computer, or car. Engineers use their knowledge of electric fields and potential to design these circuits so that electricity flows smoothly and efficiently.
Medical imaging techniques like MRI (Magnetic Resonance Imaging) and CT (Computed Tomography) also rely heavily on understanding electric fields and potential. MRI uses strong magnetic fields (which are related to electric fields) to create detailed images of the inside of the body. CT scanners use X-rays, which are a form of electromagnetic radiation, to create cross-sectional images. Doctors can then use these images to diagnose a wide range of medical conditions.
Even something as simple as a capacitor, a device that stores electrical energy, relies on the interplay between electric fields and potential. A capacitor consists of two conductive plates separated by an insulator. When a voltage is applied across the plates, an electric field develops between them, storing energy in the field. This stored energy can then be released quickly when needed, like in a camera flash or a defibrillator.
Beyond these examples, the principles of electric fields and potential are crucial in areas like telecommunications, particle physics, and even atmospheric science. From transmitting radio waves to studying the behavior of charged particles in the atmosphere, understanding this relationship is essential for advancing our knowledge of the world around us. It's a fundamental concept that underlies much of modern technology.
